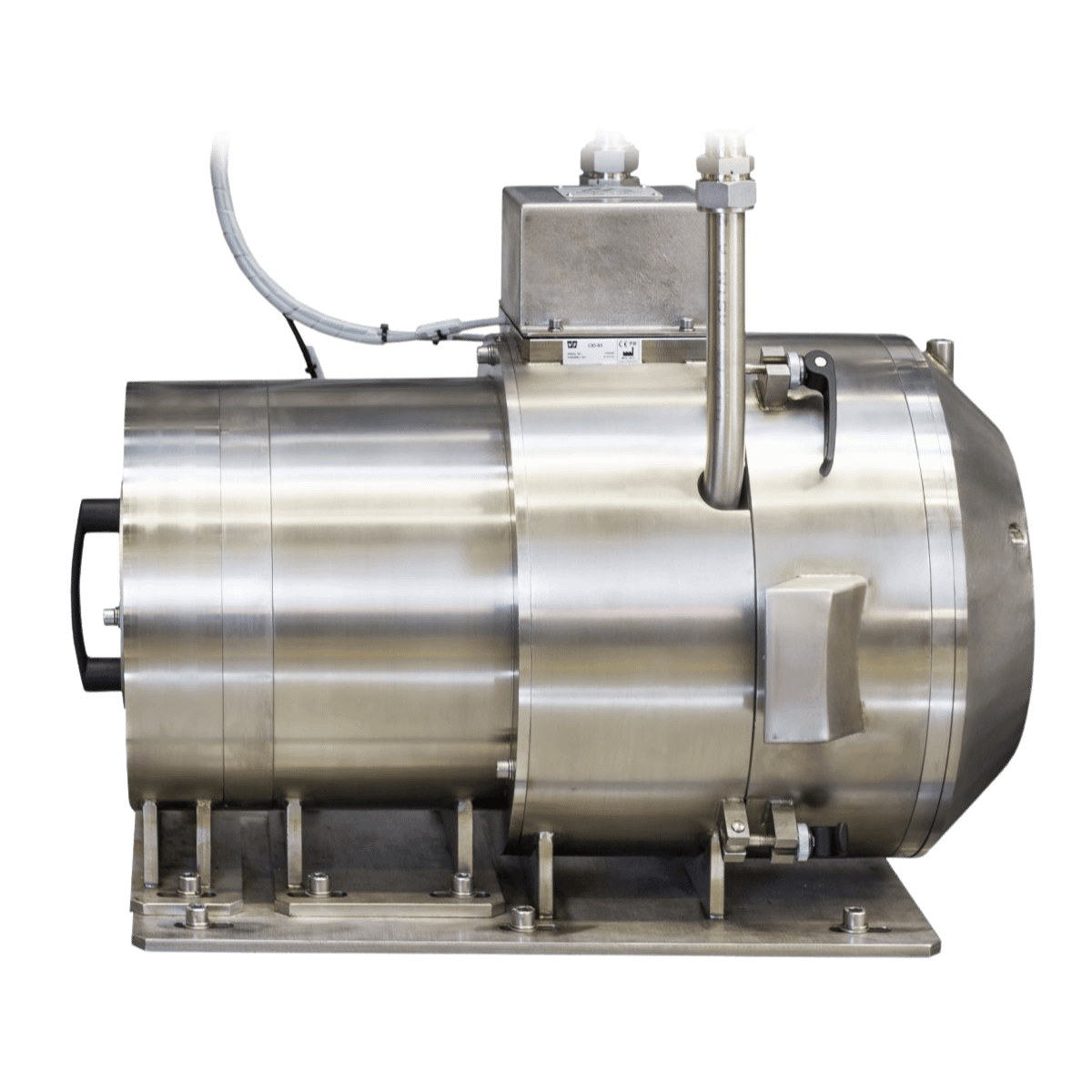

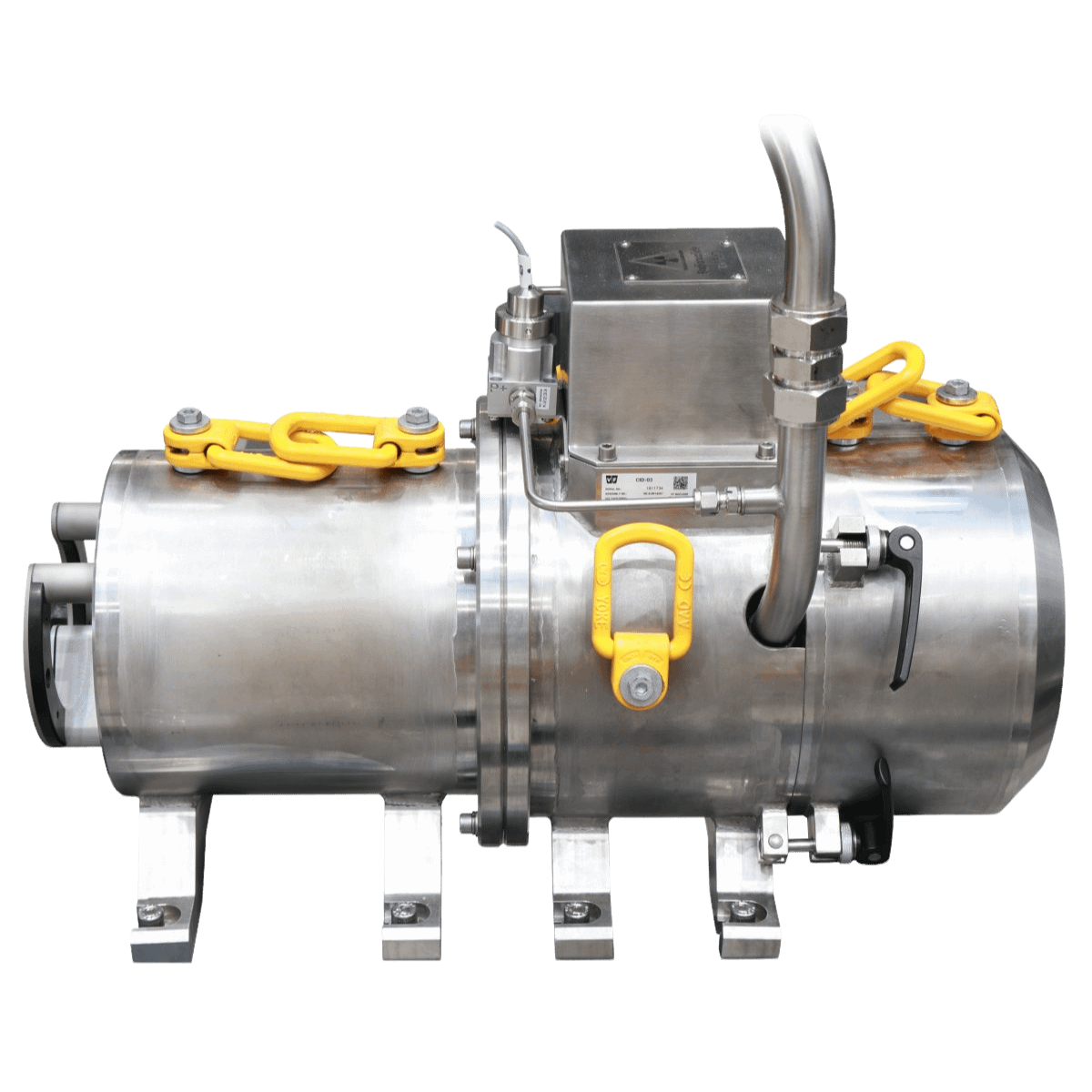

CID-03 Continuous Iodine Detector

CID-03 Continuous Iodine Detector

Continuous measurement of volumetric activity of radioactive iodine in the air during normal operation and also during emergency or post-emergency state of a nuclear power plant.

Description

The CID-03 is aimed at the detection of radioactive iodine in the air with a wide range of concentrations, starting from a very low level. CID-03 signals the iodines presence to the persons in the radiation-controlled area to ensure their protection against internal contamination.

Key Features

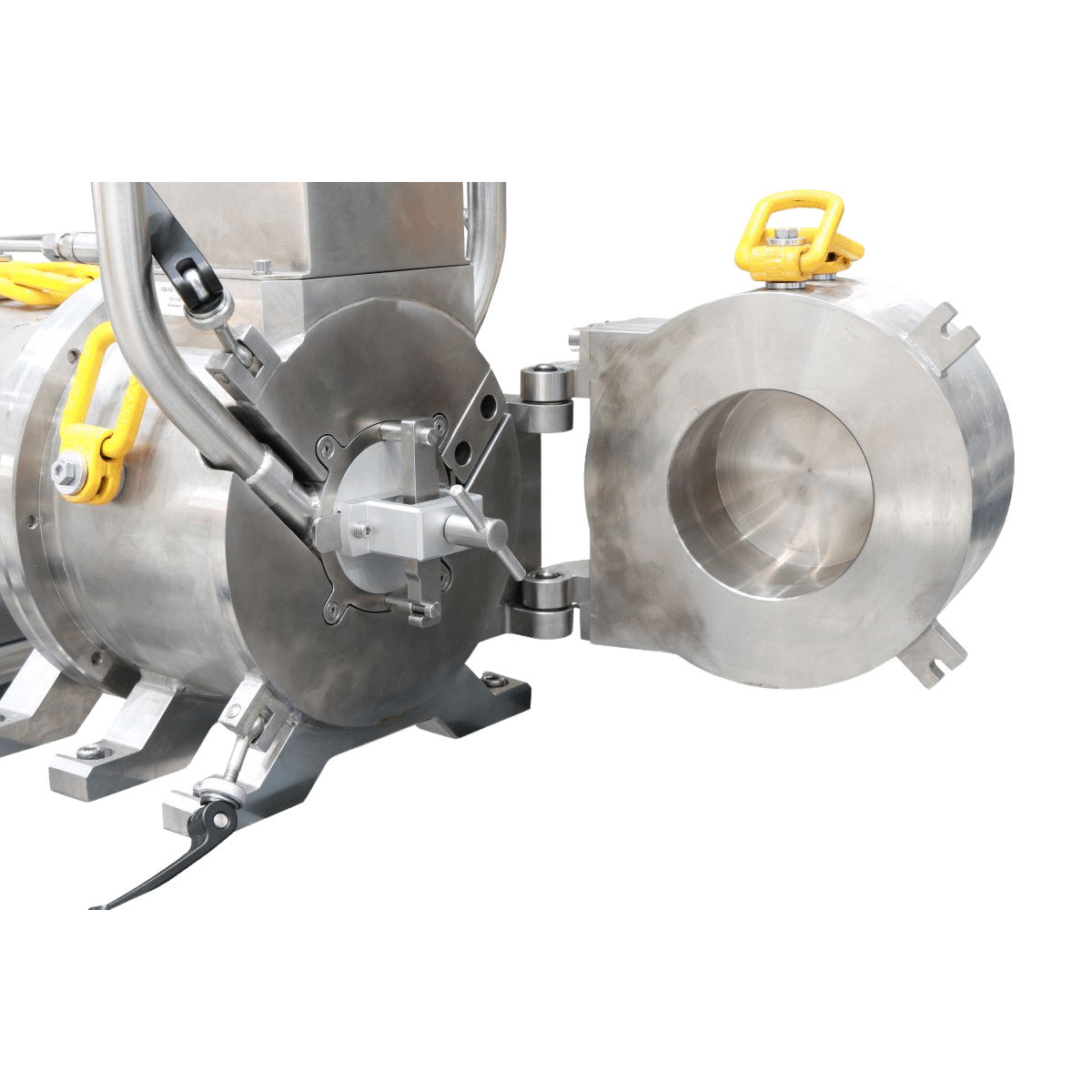

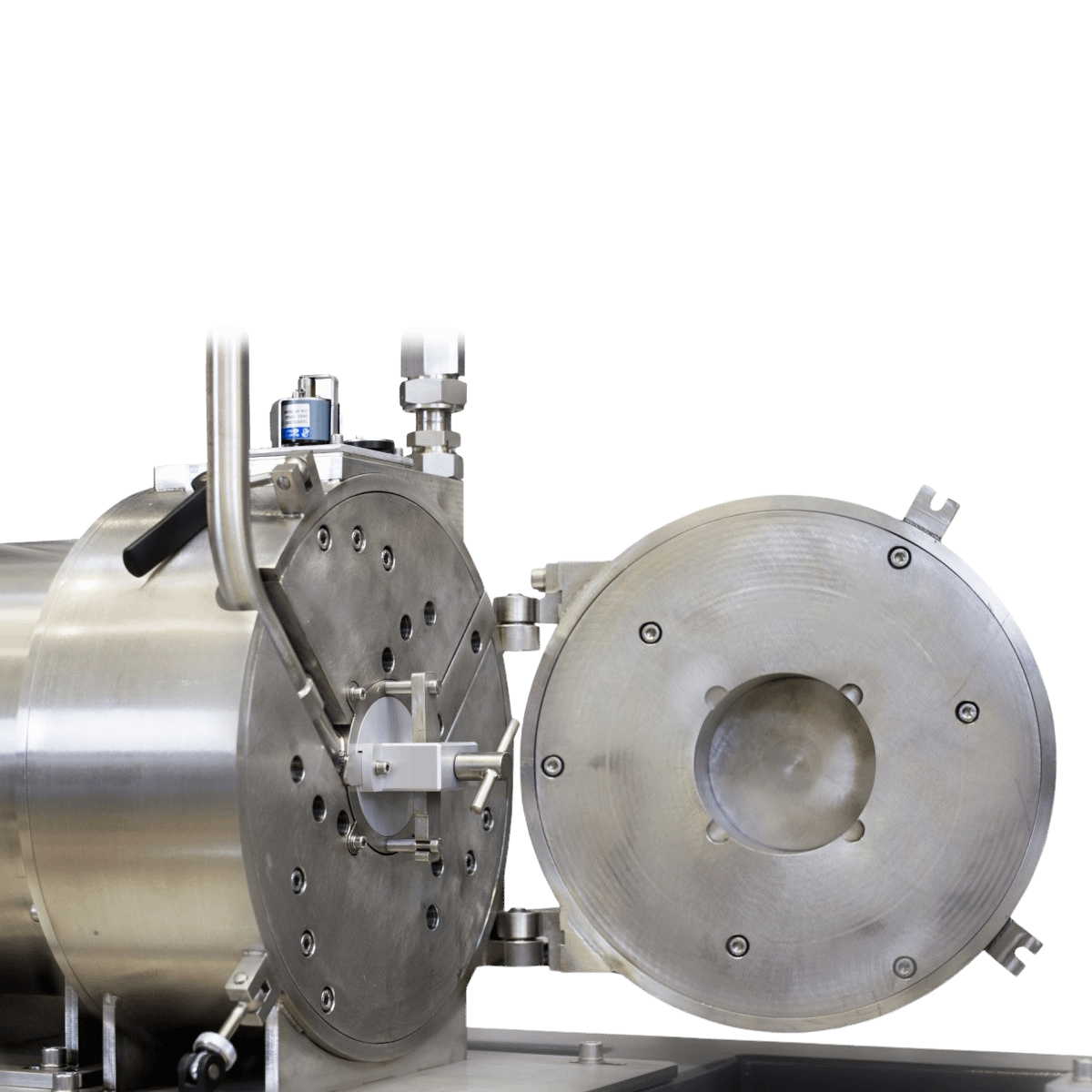

– Easy exchange of the iodine cartridge
– The detector is aimed at continuous measurement within the normal, emergency or post-emergency conditions of the NPP
– Seismic resistance
– The remote control

Specifications

SPECIFICATION
Detector type scintillation NaI(Tl)
Filter media iodine cartridge TC-45
Cartridge capture efficiency 96 %
Measuring range (131I) 2,5E+00 to 3E+06 Bq/m3
Shielding (Pb) 1 / 5 / 10 cm
Flow 30 l/min
Weight
– shielding 1 cm
– shielding 5 cm
– shielding 10 cm
60,3 kg
246,4 kg
610,7 kg
Dimensions (W × H × D)
– shielding 1 cm
– shielding 5 cm
– shielding 10 cm
(541 × 332,4 × 307) mm
(609 × 473 × 311) mm
(658 × 494,5 × 424,2) mm
