Description

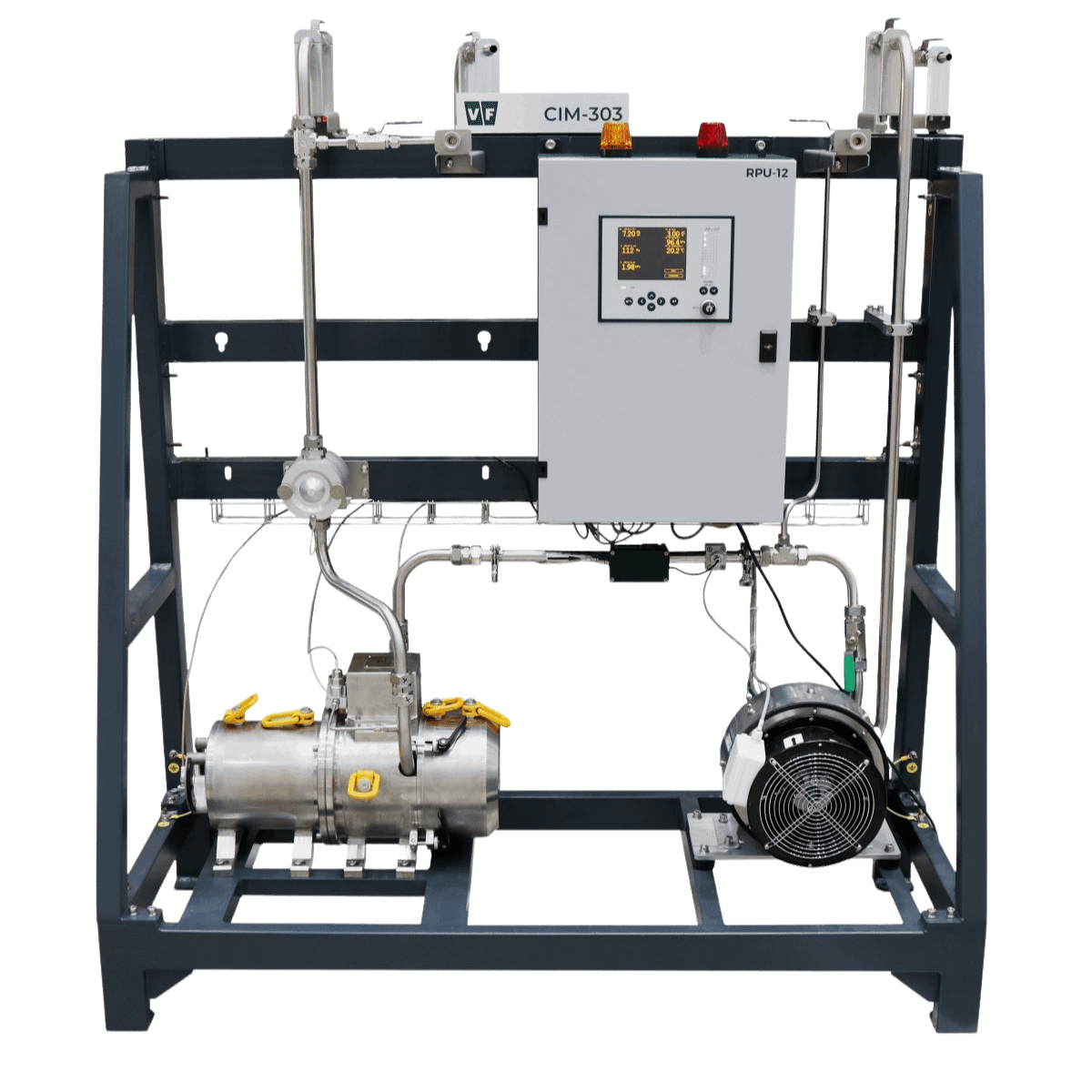

The CIM-303 Continuous Iodine Monitor is designed for continuous monitoring of iodine activity in air (in both organic and inorganic forms). The air can be sampled directly from working environments, ventilation systems or the environment.
The main components of the monitor are as follows:
– CID-03 Continuous Iodine Detector
– RPU-06 Radiation Processing Unit (RPU-12 if required)
– VP-30 Vacuum Pump (VP-50 if required)
– GFM-10 Gas Flow Meter

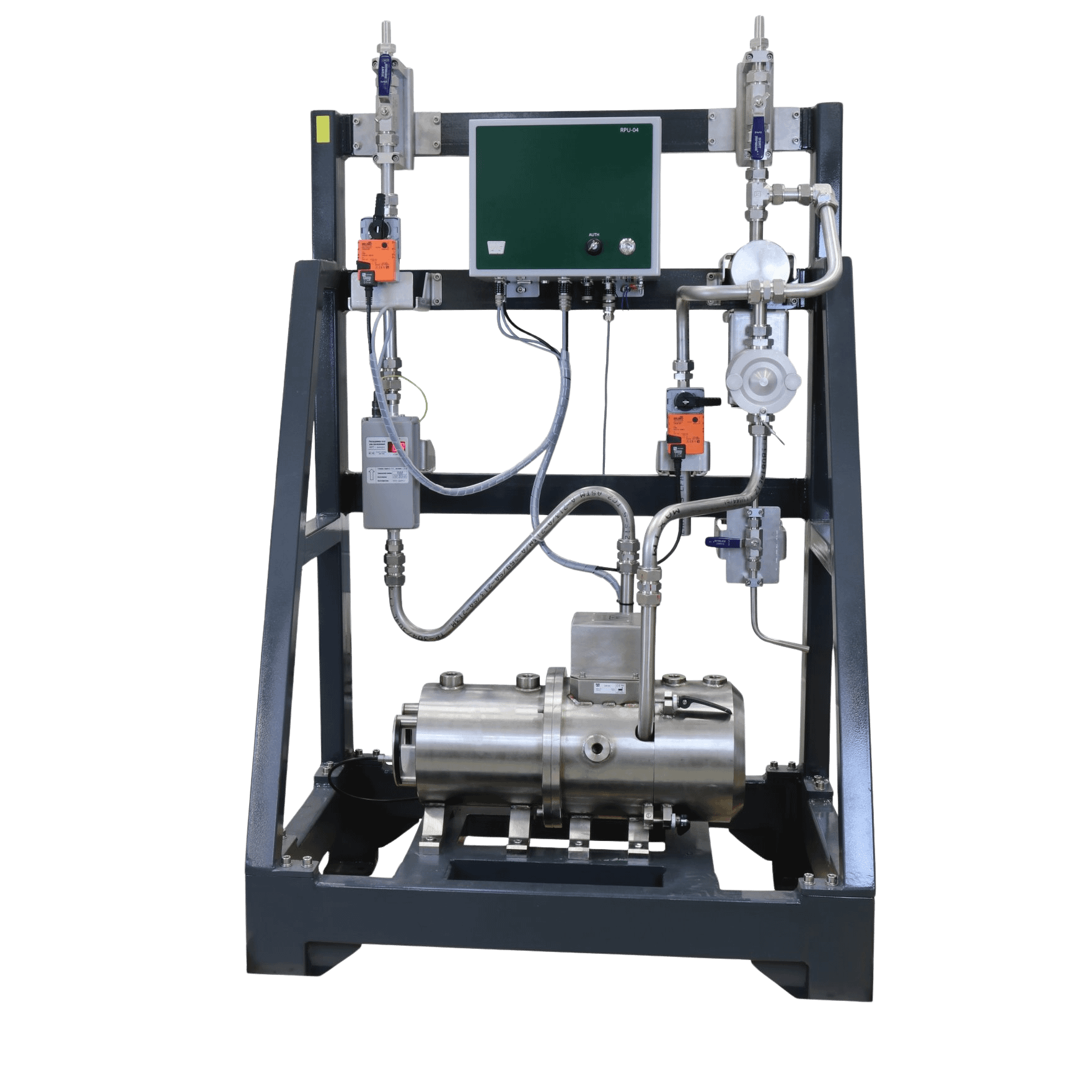

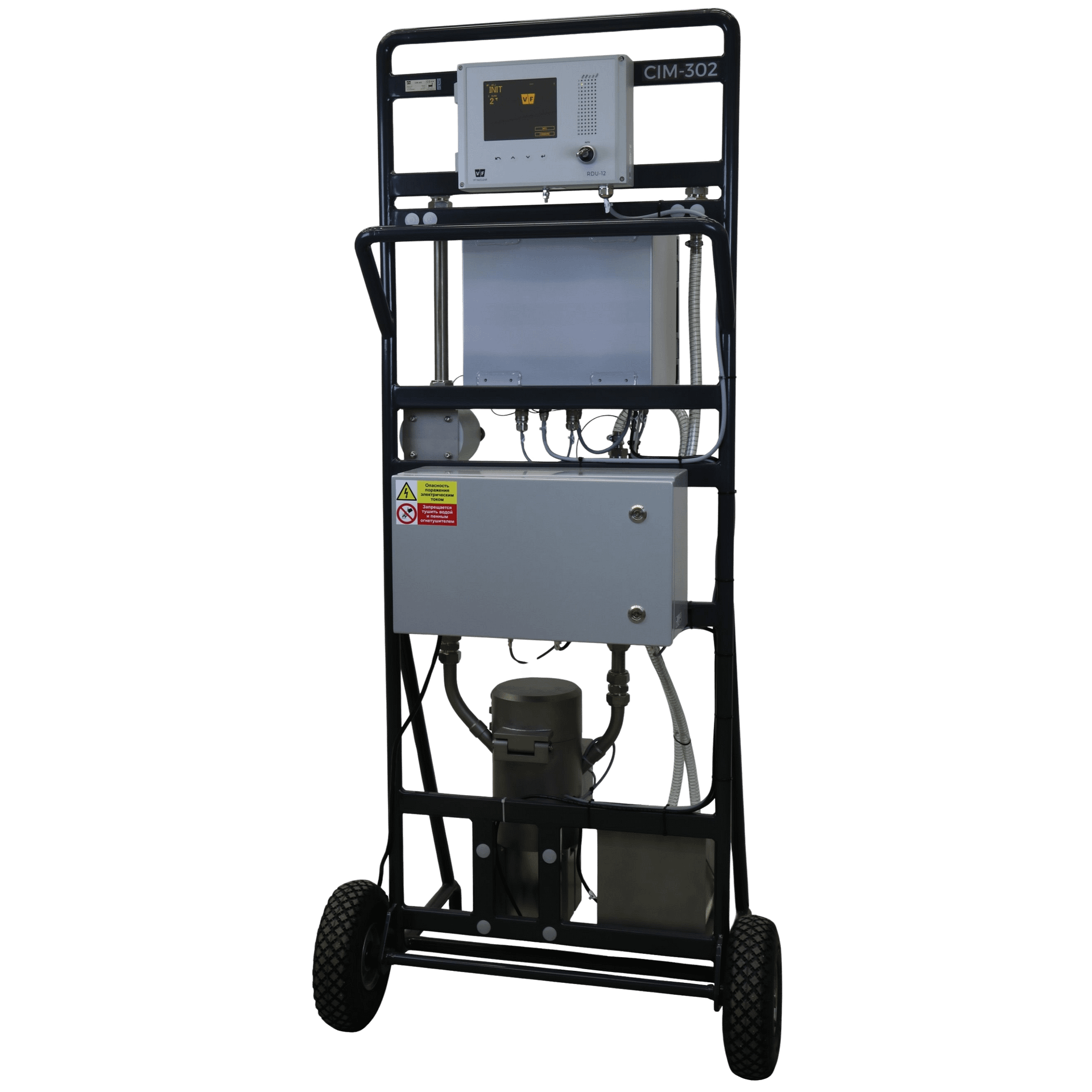

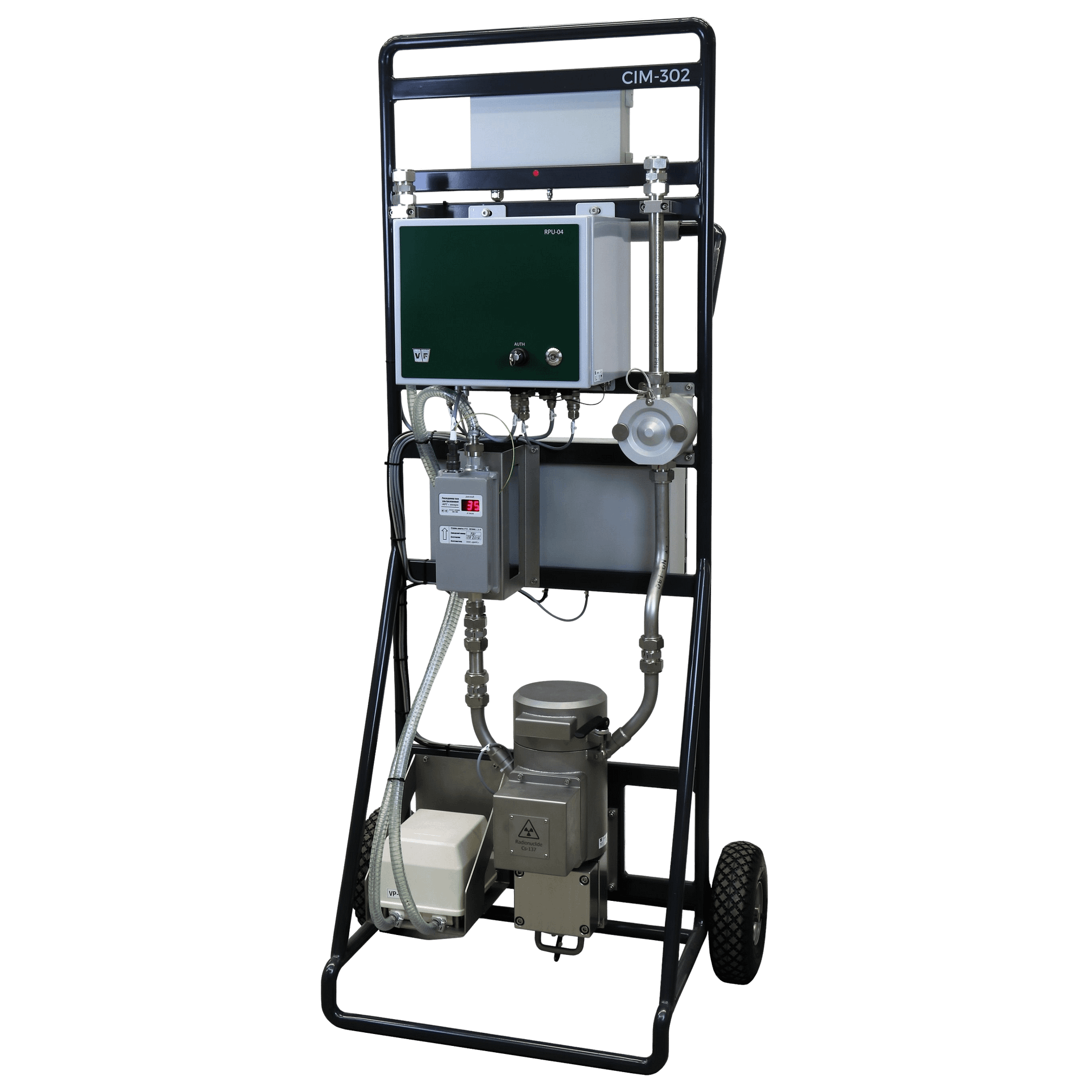

The monitor is available as installed (skid) and mobile (trolley) versions.
Key Features
– Continuous measurement under normal, accident and post-accident operational conditions
– Easy exchange of the iodine cartridge
– Installed and mobile versions available
– Various communications interfaces
– Compliant with IEC 60761, IEC 61171
– Easy maintenance
