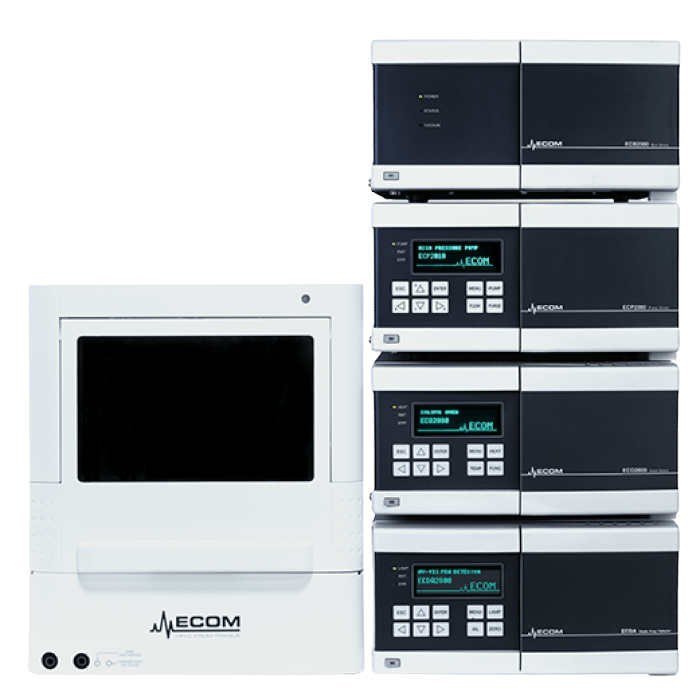

Description
The UV-VIS or UV-VIS PDA detector has eight channels in the range of 190/800 or 190-820 nm and very low noise levels, and it also offers high-speed scanning up to 100 Hz. The units are communicated through RS232 or Ethernet (LAN).
An additional PC A/D converter card is not required for this system. The system contains an autosampler and Clarity software. All units are supported in Clarity software from installation.
A wireless mouse and keyboard set (P/N: EPC-0028), a PC (P/N: EPC-0026), and a computer monitor (P/N: EPC-0027) can be purchased with the system.
MAIN PARTS
ECDA2800 UV-VIS PDA DETECTOR
Analytical Diode Array Detector measures at eight wavelengths simultaneously in the range of 190-820 nm or performs a full scan with a speed of up to 100 Hz. 3D support in Clarity SW. Noise level ±5 × 10-6 AU. Four analog outputs. Two special mathematical channels are available. AD 05 analytical cell is included.
or
ECD2800 Analytical UV-VIS DETECTOR
Detector with a continuously variable wavelength in the range of 190-800 nm and a noise level of ± 3×10-6 AU. The unit offers high-speed sampling up to 100 Hz and wavelength autocalibration. AC 05 analytical cell is included.
ECO2080L COLUMN OVEN WITH HEATING AND COOLING
This column oven allows precise temperature stabilization in the range of 0-80°C. A big compartment room can accommodate up to 3 columns with lengths up to 30 cm. Peltier technology offers the possibility of heating and cooling independently from room temperature.
ECP2010 ANALYTICAL HPLC PUMP
This isocratic pump works with the Gradient Box ECB2004B as a quaternary gradient pump. The flow rate range is 0.001-10.00 ml/min, and the pressure limit is 40 MPa. Unit software includes a new learning algorithm for pulsation suppression and many testing and diagnostic functions.
ECB2004B GRADIENT BOX WITH DEGASSER
The box is suited for handling liquids in ECOM gradient systems. It accommodates a container for solvent bottles, a built-in high-efficiency vacuum degasser, and a four-way gradient valve. Up to four solvent lines may be degassed simultaneously by one unit. A four-way gradient valve is controlled from the pump ECP2010.
AUTOSAMPLER AS96
A reliable and precise autosampler for a wide range of applications in HPLC and LC-MS in variants with or without a cooling and heating module. State-of-the-art injection technology with fast injection and wash cycles. For 2×48 vials, max. pressure 40 MPa (5801 psi)
CLARITY CHROMATOGRAPHY SOFTWARE
This system is fully controlled by Clarity Chromatography software, which is also a part of the delivery. Clarity SW contains tools to meet FDA 21 CFR Part 11 requirements, ensuring its suitability for use in regulated environments.
