Description

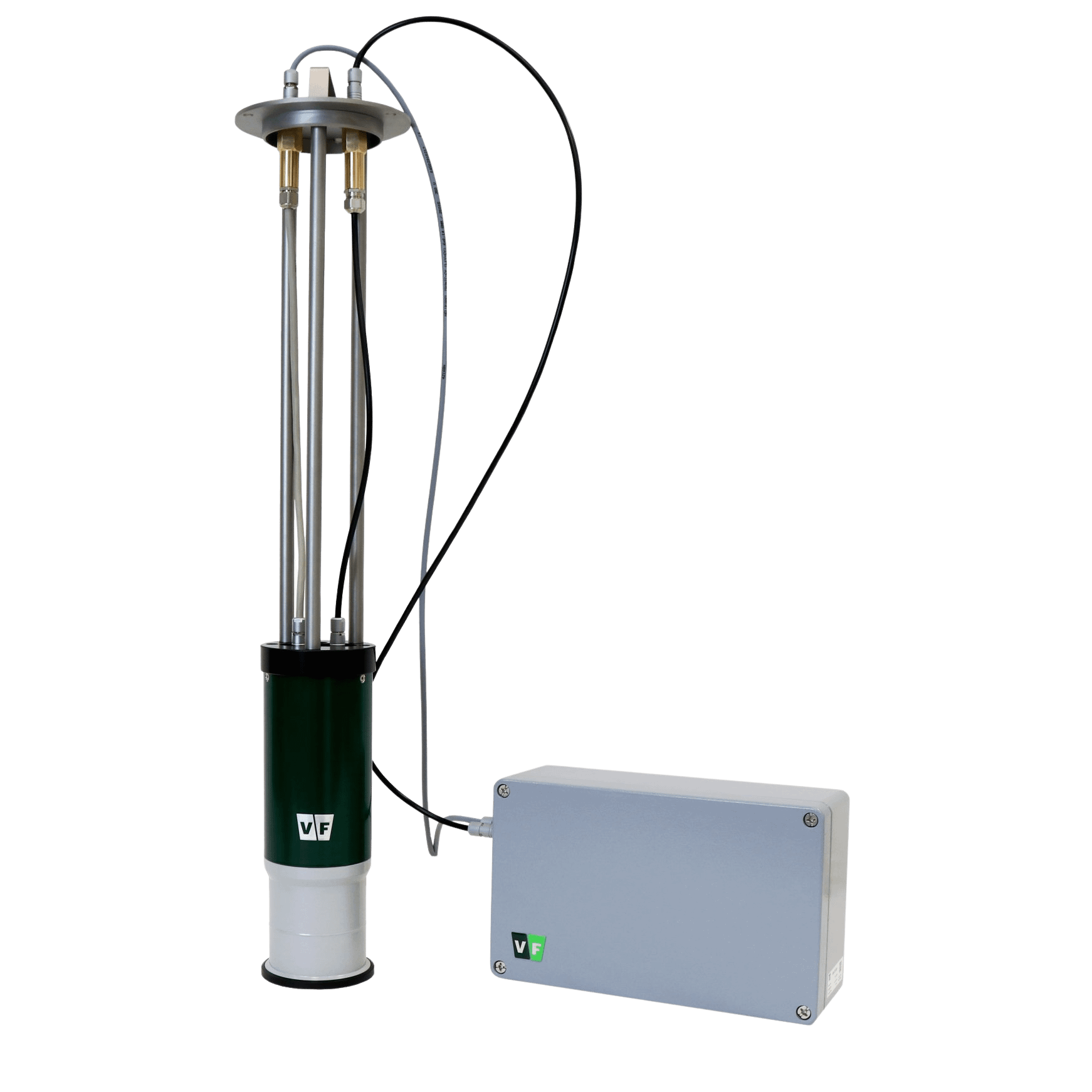

LAD-44 Liquid Activity Detector is designed to measure the presence of gamma radionuclides in technological circuits of nuclear facilities.
The detector consists of:

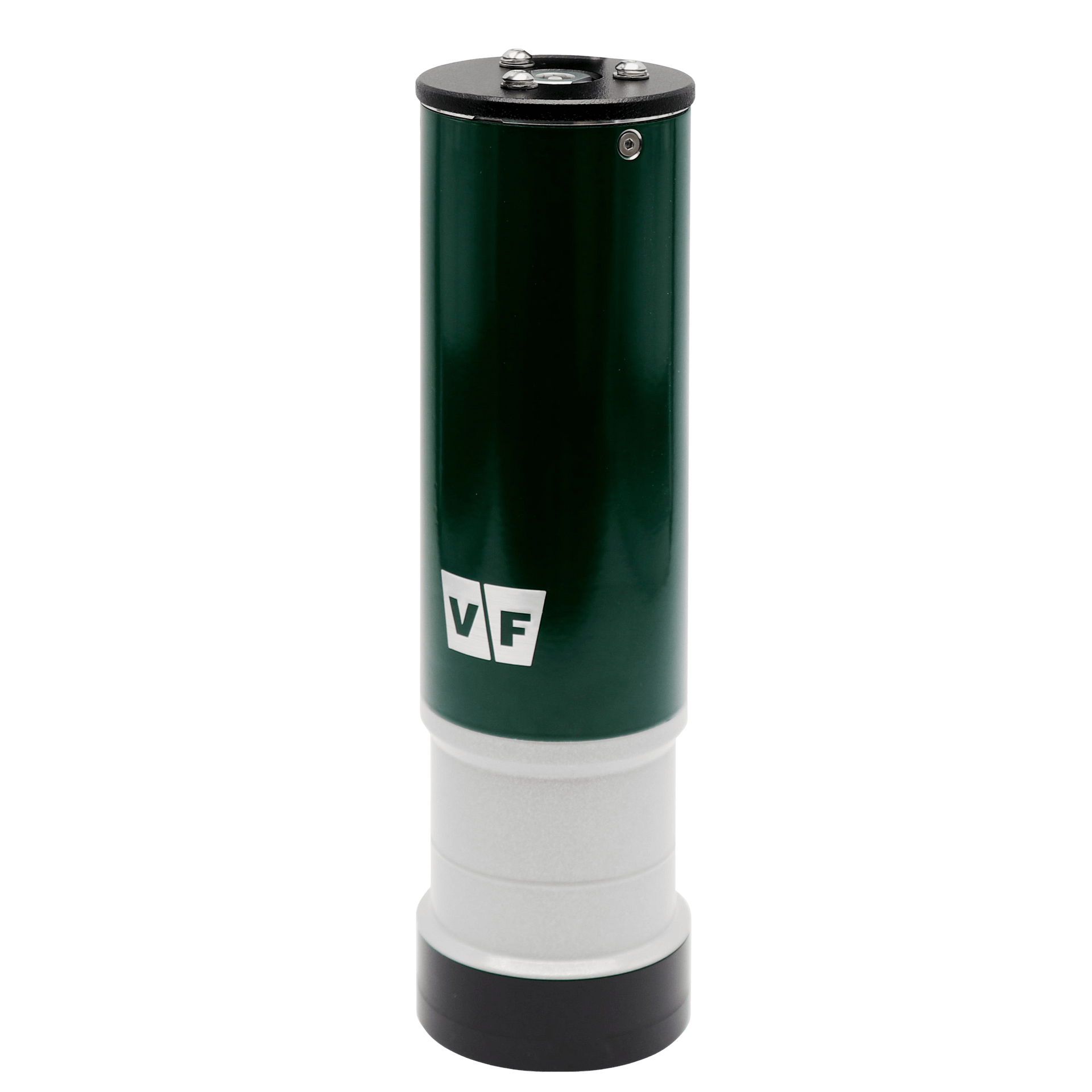

– The detector GD-52, based on a gamma detector NaI(Tl) 2.5 “x 2.5” (proper function of the detector can be checks by built-in test LED),

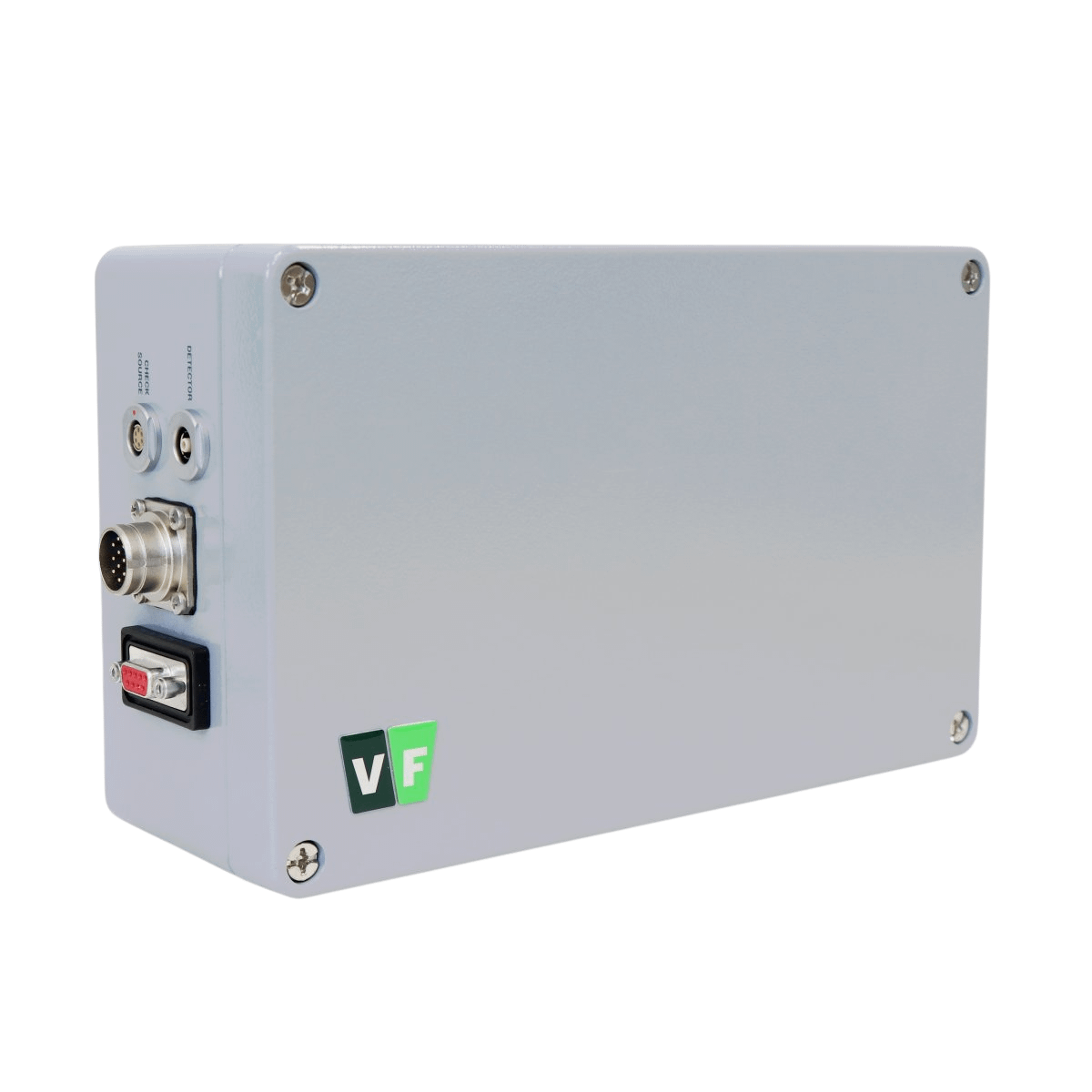

– RPU-12 Data Acquisition and Processing Units with one, optionally two, 1024 Channel Analyzers (MCA) to evaluate data from detector.
– The RPU determines the total volumetric activity of gamma radionuclides in the fluid flowing through the conduit.
Key Features
– Measurement of volume activity of gamma radionuclides in liquid process circuits of nuclear facilities
– In-Line Monitor – the detector is mounted directly in the process line, in which the measured liquid flows
– Checking of the detector function by means of LED check source (without using radioactive source)
