Description
The LAM-541 Liquid Activity Monitor is a fixed radiation monitoring system developed to measure the total volumetric activity of gamma-emitting radioactive noble gases in the steam-air mixture within the turbine condenser vacuum pump sump ventilation line at nuclear power plants.
The LAM-541 assists in the continuous monitoring of radioactive noble gas levels in the ventilation line under routine operating conditions. Its in-line monitor design allows the detector to be installed directly within the measured pipeline, enabling direct measurement on the process line.

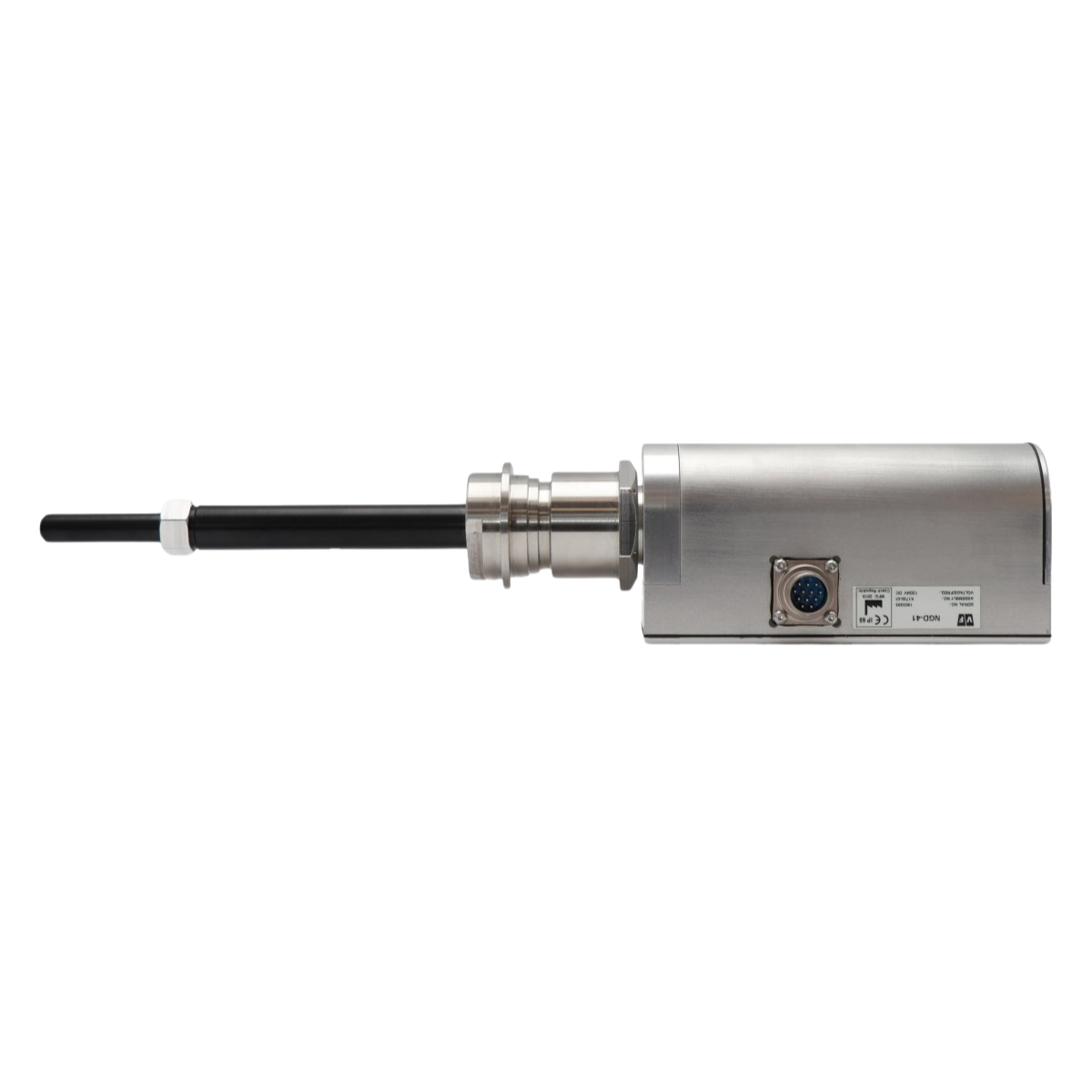

The system consists of an NGD-41 detector group and an RPU-06 radiation processing unit. A temperature-resistant YAP crystal scintillation detector operates in conjunction with pulse processing electronics and an LED-based control/stabilization source at the measurement point.

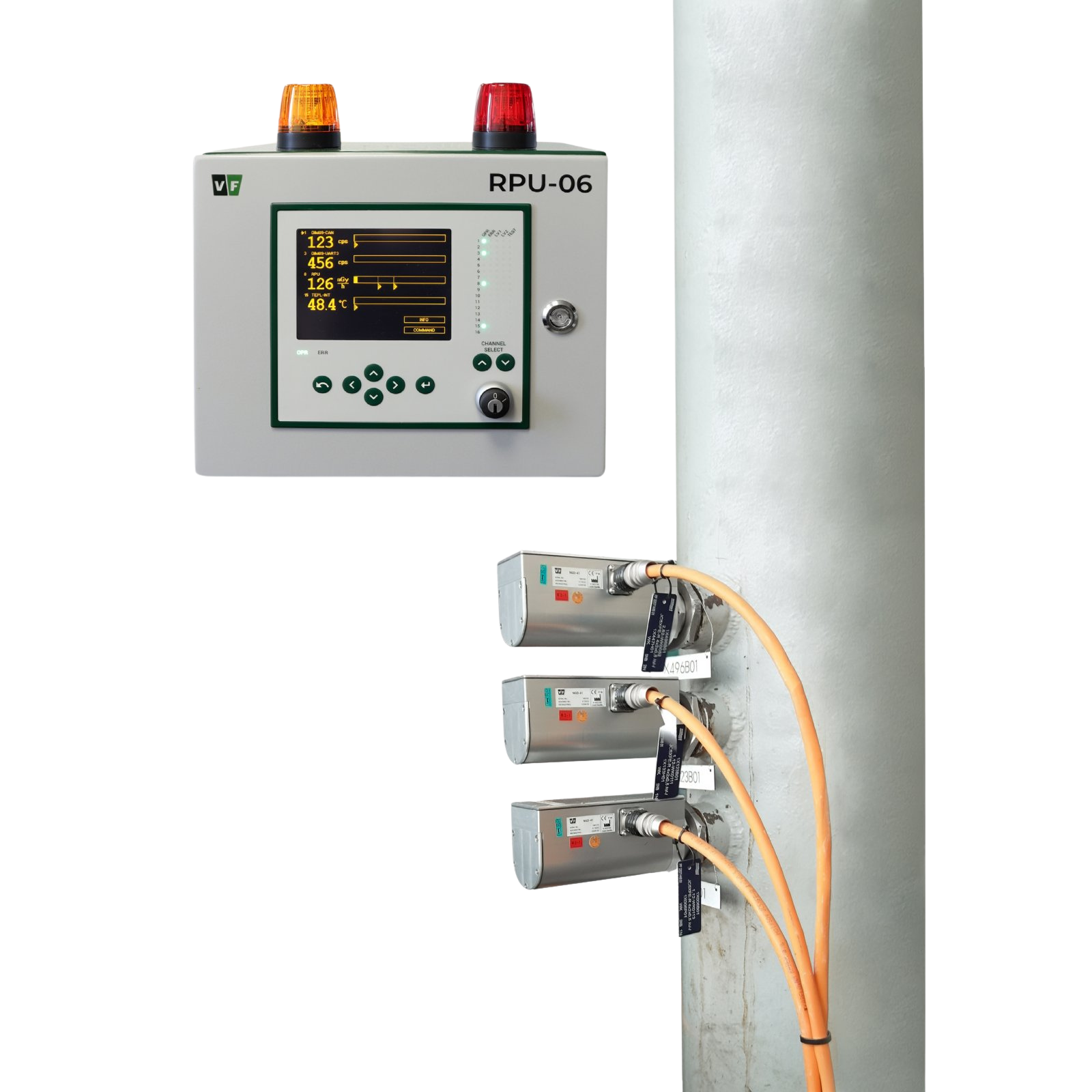

The RPU-06 unit locally displays measurement results, archives measurement values and system parameters, and provides visual and audible alarms if predetermined alarm levels are exceeded. For applications not requiring a local display, the RPU-04 unit may also be preferred.
Through its Ethernet Modbus TCP and RS-485 Modbus RTU interfaces, the LAM-541 can be integrated into facility radiation monitoring infrastructures. With optional analog/digital input-output modules and safety-classified function support, it can be utilized in critical facility applications.
Key Features
- Radioactive Noble Gas Activity Measurement in Steam-Air Mixture
- In-line Pipeline Detector Installation
- YAP:Ce Scintillation Detector
- Automatic Spectrum Stabilization with LED Control Source
- Local Display and Alarm Monitoring with RPU-06 Processing Unit
- RS-485 Modbus RTU and Ethernet Modbus TCP Interfaces
- Optional Analog and Digital Input/Output Modules
- Optional IEC 61226 Category C Safety-Classified Function
Application Areas
- Radiation Monitoring Systems
- Process Radiation Monitoring
- Radioactive Emission Monitoring
- Nuclear Power Plants
- Nuclear Facilities and Research Reactors
- Ventilation Line Monitoring
- Radiation Safety Audits
- Environmental Radiation Measurements
